The steel grating element made up of steel member in open form where the Cross bars and bearing bars are joined at the point of intersection by welding and locking the same is called Steel Grating. The bearing bars are the flat bars that withstand the major load, whereas the crossbaris the bars made up of twisted, flat or round bars and are mainly the connecting bars extending across the bearing ones. The length of this kind of grating is measured by the grating panel dimension, parallel to and running in a similar direction as bearing bars.
DESCRIPTION
The steel grating element made up of steel member in open form where the Cross bars and bearing bars are joined at the point of intersection by welding and locking the same is called Steel Grating. The bearing bars are the flat bars that withstand the major load, whereas the crossbaris the bars made up of twisted, flat or round bars and are mainly the connecting bars extending across the bearing ones. The length of this kind of grating is measured by the grating panel dimension, parallel to and running in a similar direction as bearing bars.
The grating can be made of various materials, namely steel, galvanized metal, aluminum and also fiberglass.

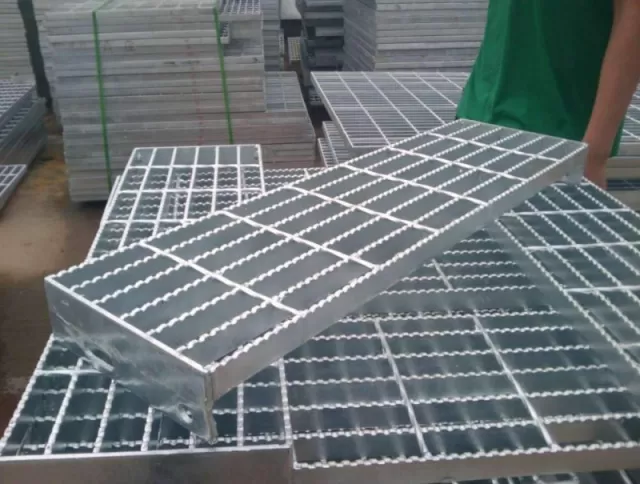

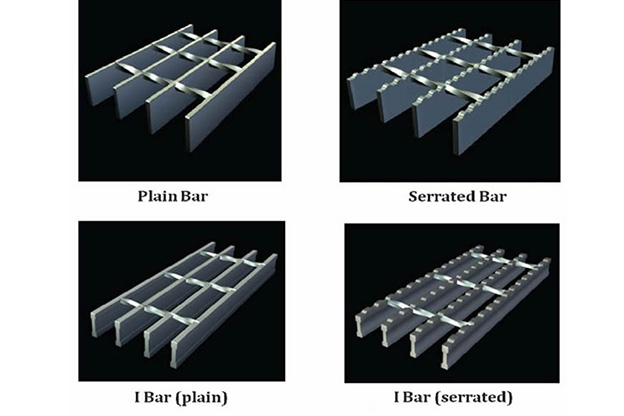

Steel Grating Bearing Bar can be of three types namely-
a)Plain bar- the one with the widest use for sidewalk floors

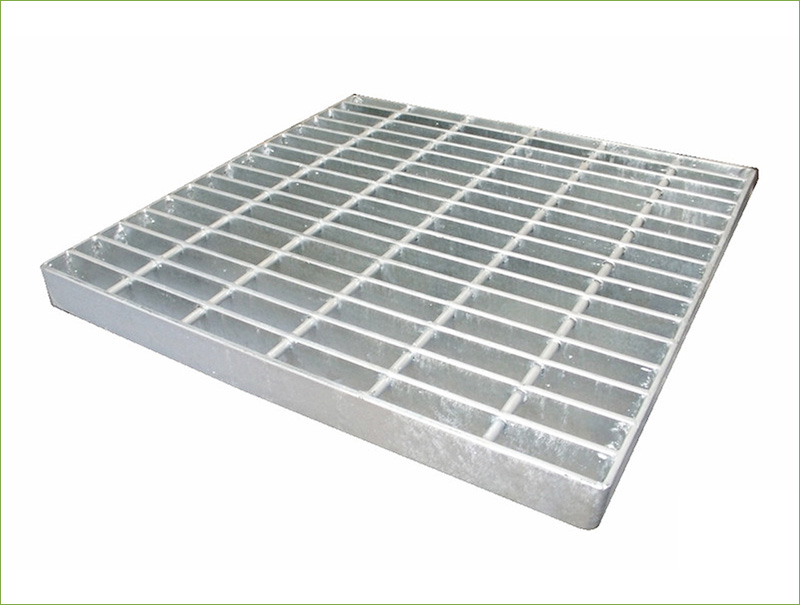

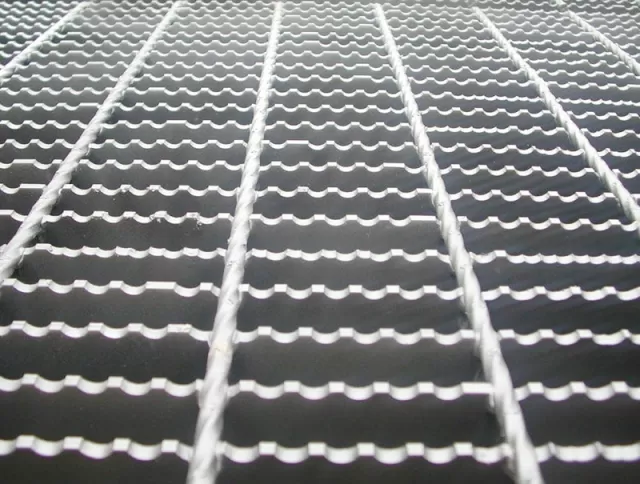

b) Serrated bar — non-skid and safer form
c) I-shaped plain & serrated bar — lighter in weight and more economical , better anti slip effect form
Specification
Our grating is manufactured to the following sizes. From this we can cut to any size to suit your requirements.
Mild steel - 5800mm(load bar) x 1000mm
Aluminium- 5000mm(load bar) x 1000mm
Standard sheet size :
| Steel Grating | ||||
| Load bar size/mm | Series 1 (30mm bar centres) | Series 2 (40mm bar centres) | ||
| Mass kg/m2 | Maxmium Span | Mass kg/m2 | Maxmium Span | |
| 20x3 | 19.5 | 1073 | 15.5 | 998 |
| 20x5 | 29.9 | 1219 | 23.4 | 1134 |
| 25x3 | 23.4 | 1268 | 18.5 | 1180 |
| 25x5 | 36.4 | 1441 | 28.3 | 1341 |
| 32x3 | 28.9 | 1526 | 22.6 | 1420 |
| 32x5 | 45.6 | 1734 | 35.2 | 1614 |
| 40x3 | 35.1 | 1804 | 27.3 | 1679 |
| 40x5 | 56.1 | 2050 | 43.0 | 1908 |
| 45x3 | 62.6 | 2239 | 47.9 | 2084 |
| 45x5 | 69.2 | 2424 | 52.8 | 2255 |
| 55x3 | 75.5 | 2603 | 57.7 | 2243 |
| 55x5 | 88.9 | 2951 | 67.6 | 2746 |

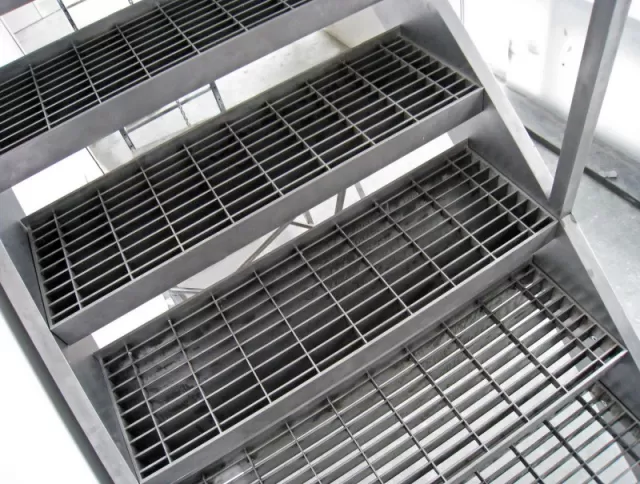

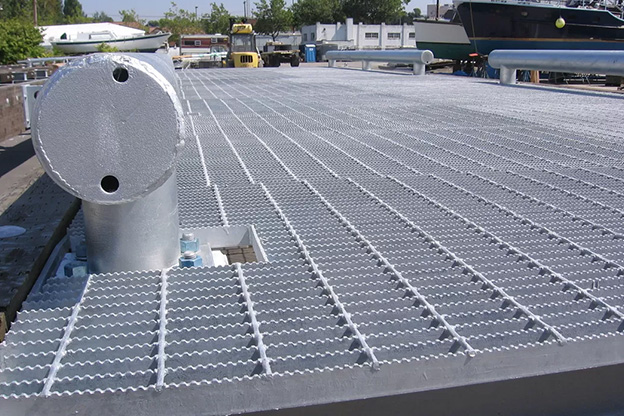

All kind of plant, such as power plants, chemical plants, steel plants, oil plants, paper-making plants, and so on. Used as platforms.
All kind of shipping, used as platform of ramp, channels, pumping stations and engine room.
All kinds bridge, such as side road of railway bridge, suspension bridge, trestle bridge. Used as panel shop.
Used as drain covers and road fence at municipal engineering and road.
Other uses, such as oil platform, wharf road, washing platform, tower platform and building fence, and so on.

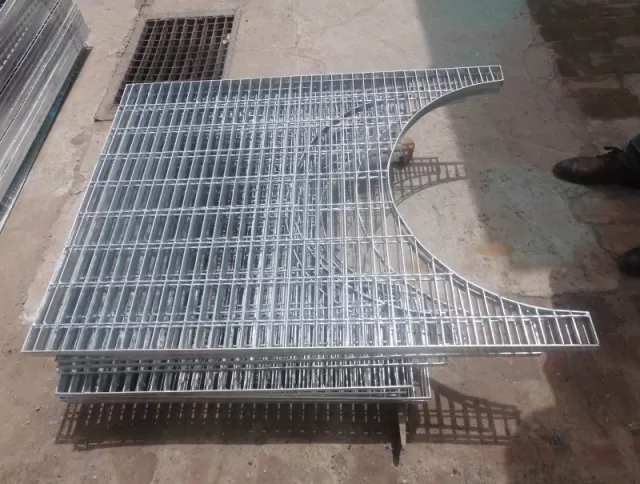

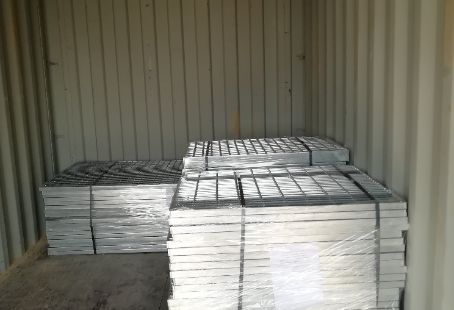

Packaging & Delivery
