Hinge Joint Fence

Hinge joint fence is the most common knot in agricultural fencing. And Hinge Joint Roll is the best choice for ranchers for protecting jumping animals like deer, horses, cows, sheep and goats.


Also Known As:

Field Fence

Cattle Fence

Farm Fence

Prairie Fence

Grassland Fence

Horse Fence

Sheep Fence

Deer Fence

Livestock Fence

Inquire Now

DESCRIPTION

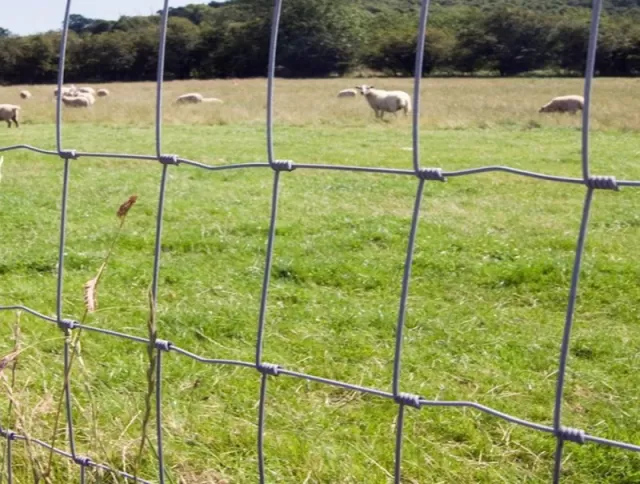

Hinge joint fence is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire around the line wire at each intersection, and it acts as a hinge that gives under pressure, then springs back into shape. This provides easy installation, while retaining full height for continuing protection and good looks. Vertical wires are individually cut and wrapped for maximum strength and flexibility. This design can also absolve animal impact without damage and is the most economical knot choice available. Besides, farm wire fence also can be used with barbed wire or chicken wire for farm fencing, garden fencing, road fencing, forest fencing and so on.

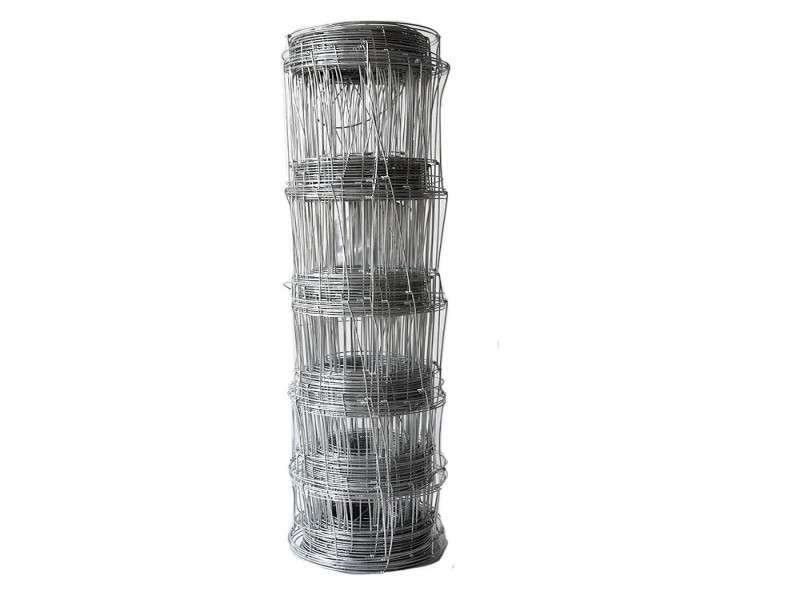

Hinge joint rolls is the best choice for ranchers for protecting jumping animals like deer, horses, cows, sheep and goats. The hinge-knot system ensures proper stretching and allows for easier installation over hilly or rough terrain. Uses of our galvanized hinge-joint knots allow the fence to give under pressure and spring back into shape. The heavy zinc coating of the wire offers the finished fencing good rust resistance and corrosion.






Hinge Joint Fence Regular Specification

No.
Type
Specification
Wire Diameter(mm)
1
7/150/813/50102+114+127+140+152+1782.0/2.5
2
8/150/813/5089(75)+89+102+114+127+140+152
3
8/150/902/5089+102+114+127+140+152+178
4
8/150/1016/50102+114+127+140+152+178+203
5
8/150/1143/50114+127+140+152+178+203+229
6
9/150/991/5089(75)+89+102+114+127+140+152+178
7
9/150/1245/50102+114+127+140+152+178+203+229
8
10/150/1194/5089(75)+89+102+114+127+140+152+178+203
9
10/150/1334/5089+102+114+127+140+152+178+203+229
10
11/150/1422/5089(75)+89+102+114+127+140+152+178+203+229

Hinge joint wire fence features

Corrosion resistant galvanized steel

Hinged joint - flexible knot absorbs stock impact

Graduated with horizontal wires at the ground level closer together, gets wider at the top of the fence

High in strength and durability

Designed for fast installation

Easy and no-cost maintenance

Effective and humane - safe to use anywhere

Applications of Hinge Joint Mesh Fences

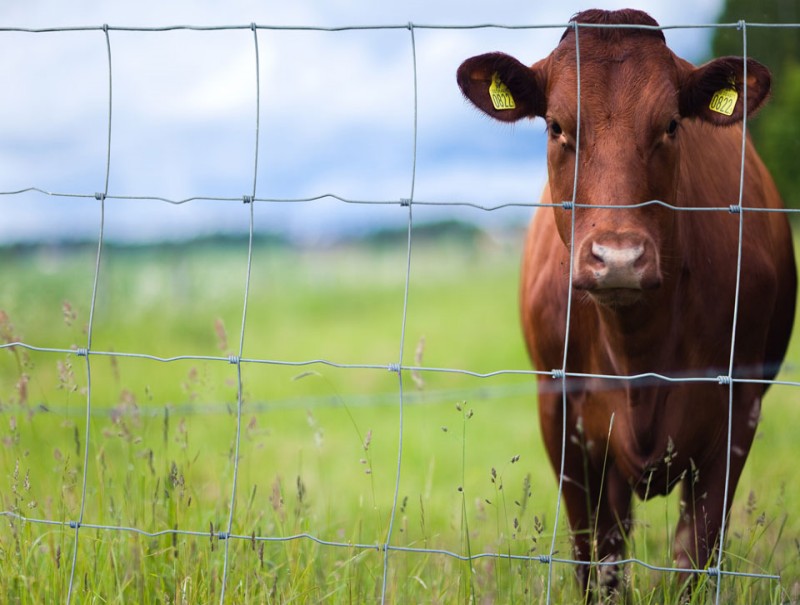

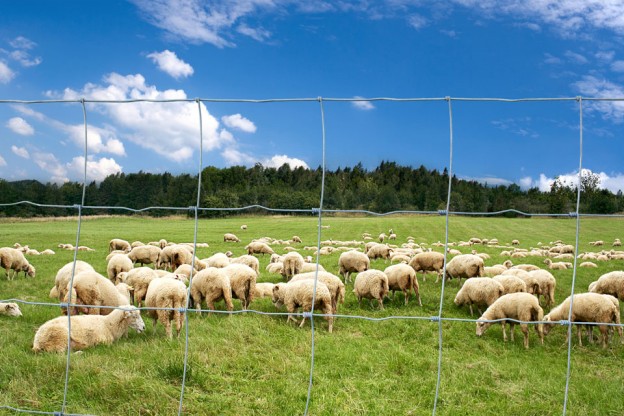

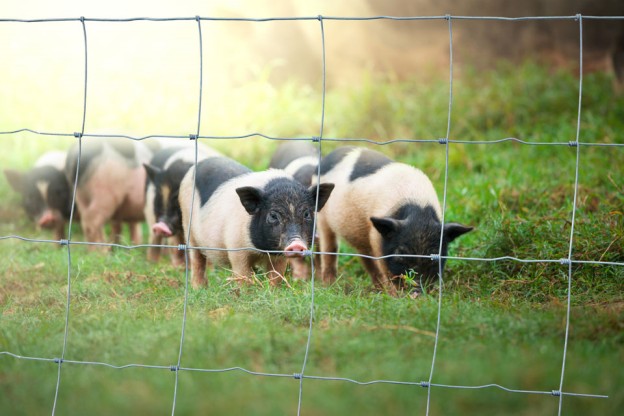

Livestock Management: These fences play a pivotal role in creating secure enclosures for livestock, minimizing the risk of animals straying and ensuring their safety.

Pasture Rotation: Farmers utilize hinge joint fences to divide pastures, facilitating rotational grazing and optimizing land use efficiency.

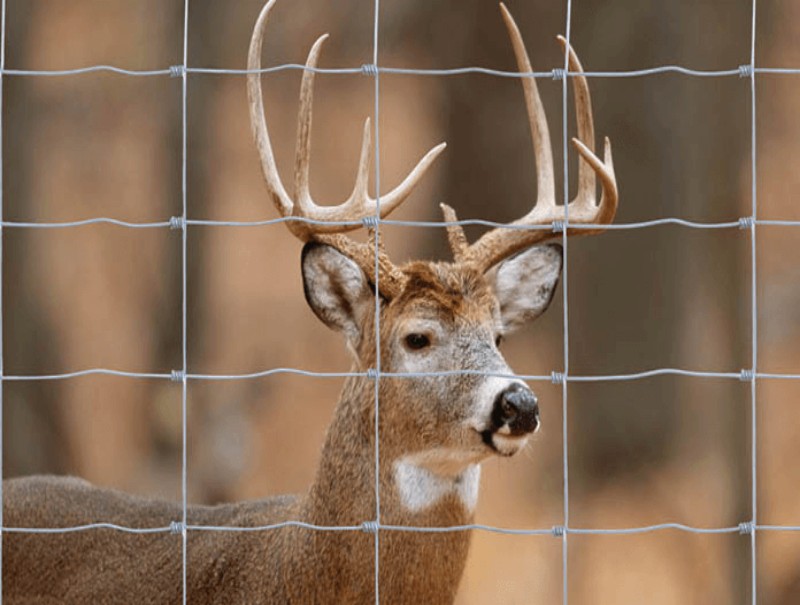

Wildlife Control: Hinge joint fences aid in wildlife management, preventing wildlife from encroaching on cultivated areas and sensitive habitats.

Property Defining: They serve as reliable tools for demarcating property boundaries and dissuading unauthorized access.

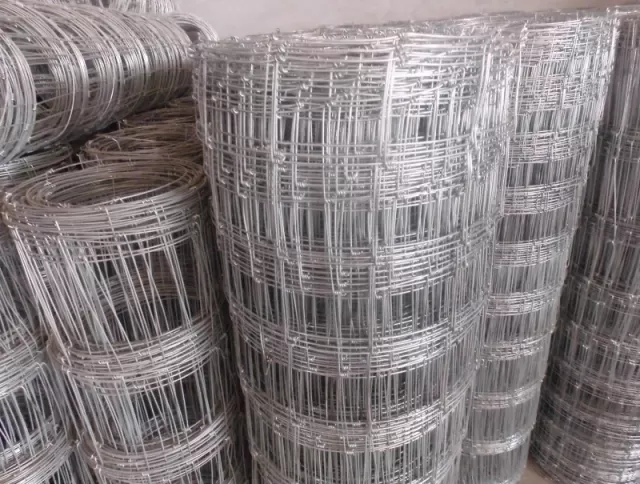

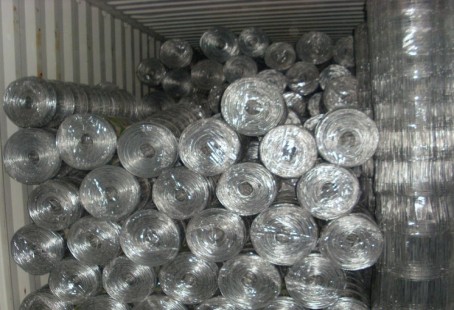

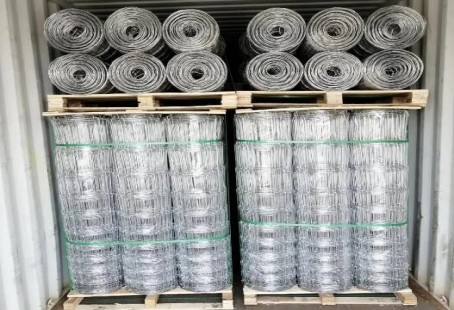

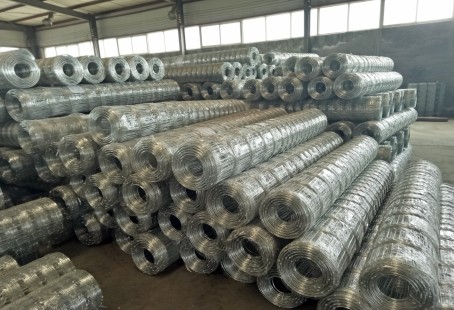

Packaging & Delivery

  • Hinge Joint Fence
  • Hinge Joint Fence
  • Hinge Joint Fence
