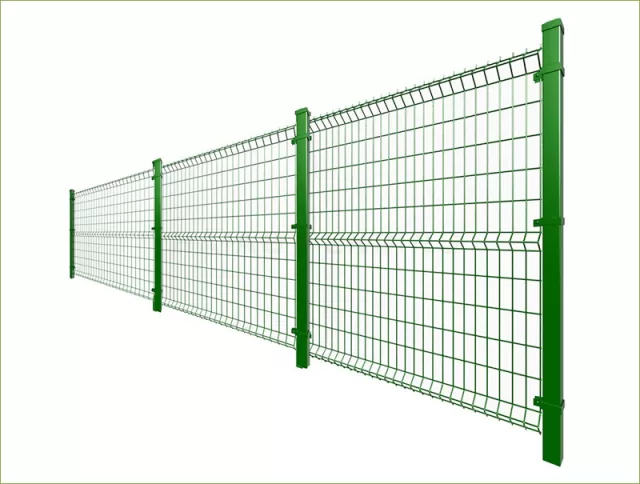

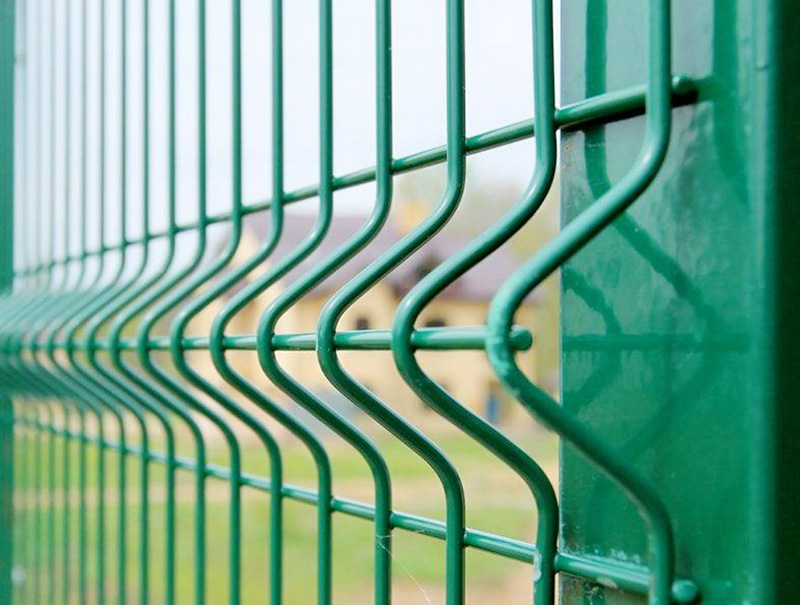

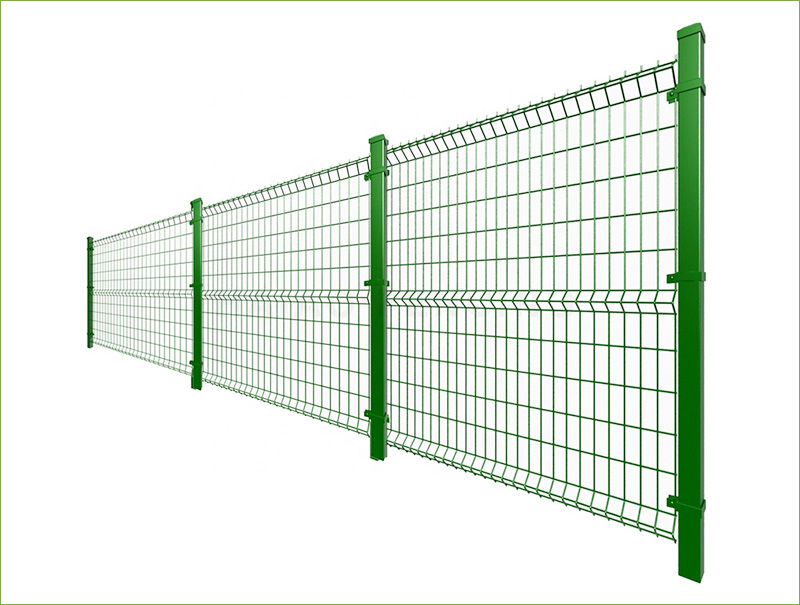

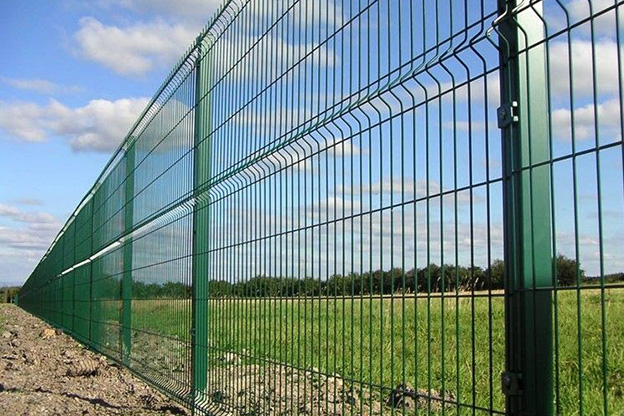

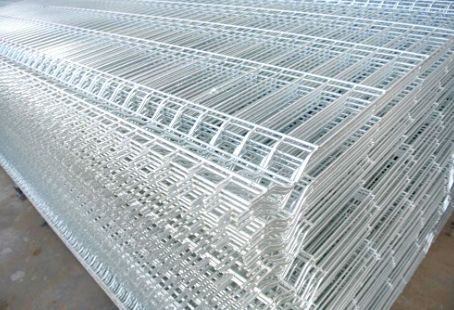

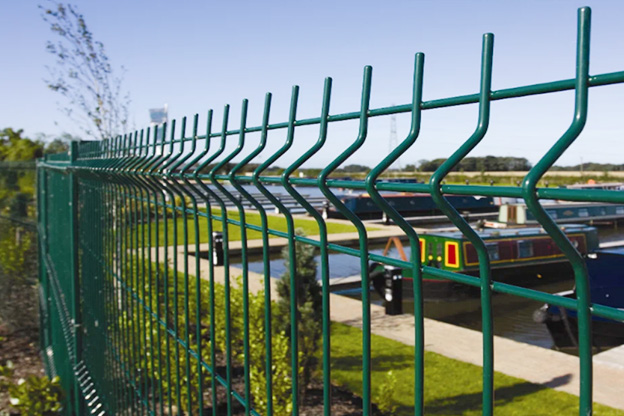

3D Fence Panel, also known as 3D security fence, Triangle Bending Welded Mesh Fence, security fencing, and wire mesh fence, is made from low carbon steel wire or galvanized wire. It is connected to metal posts through clips. The quantity of curves varies based on the fence height. These fence panels, with their unique V-shaped bending design, are durable and attractive. The sturdy and smooth guardrail panels are primarily used for security protection in construction sites, residential buildings, sports fields, warehouses, highways, airport service areas, train stations, and other locations.
DESCRIPTION

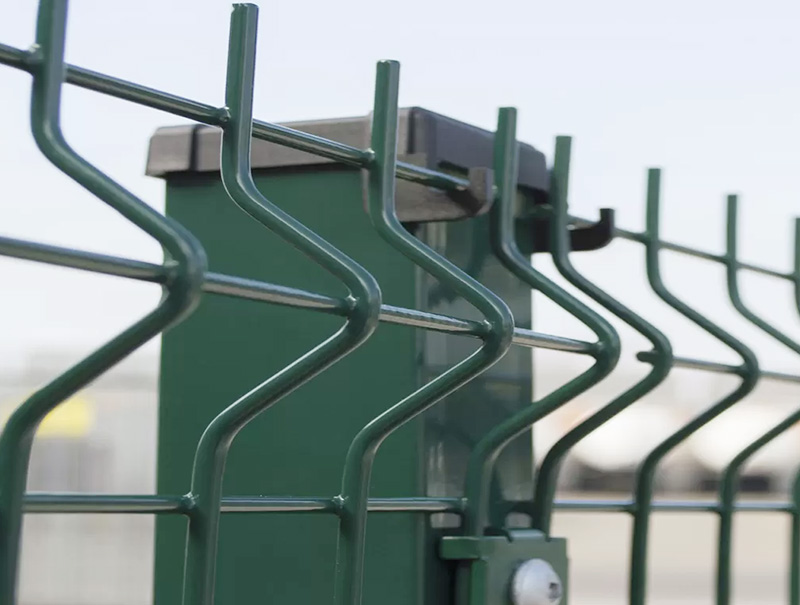

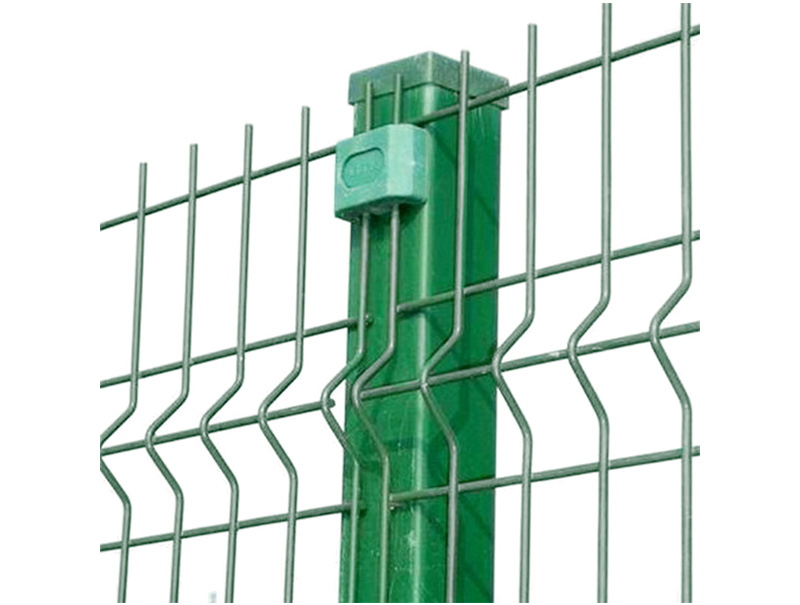

The 3D Fence Panel system is consisted of wire mesh fence panel and post, and the two parts are connected together with accessories. Because of its stable, durable and flexible structure, the curved wire mesh fence is widely used in garden, factory, railway, highway or any other place that would not like visitors.
· Low carbon steel → Welded → Electrostatic spraying.
· Galvanized wire → Welded → Electrostatic spraying.
· Low carbon steel → Welded → Hot dipped galvanized.
Material: low carbon steel wire or galvanized wire.
Color: green, blue, white, gray or customized according to RAL colors.
Wire diameter: 3–8 mm.
Mesh size: 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, 75 × 150 mm, 75 × 200 mm.
Panel height: 0.60–2.43 m (standard) or customized.
Panel length: 2–3 m or customized.
Curve quantity: 2, 3 or 4.
Post type: peach post, square post, rectangular post and round post.
3D Fence Panel Specification
| Panel height | Panel Length | Wire Diameter | Mesh Size | Curve No. |
| 0.6/0.63m | 2.5m or custom | Gal + Powder Coated 3.85mm / 4.0mm 4.85mm / 5.0mm Gal + PVC Coated 3.0mm / 4.0mm 4.0mm / 5.0mm Hot-dipped Gal. | 50*200mm 55*200mm 50*150mm 75*150mm | 2 |
| 1.0/1.03m | 2 | |||
| 1.2/1.23m | 2 | |||
| 1.5/1.53m | 3 | |||
| 1.7/1.73m | 3 | |||
| 1.8/1.83m | 3/4 | |||
| 1.9/1.93m | 3 | |||
| 2.0/2.03m | 4 | |||
| 2.4/2.43m | 4 |
Note: The fence can be customized according to your required if above specification is not satisfied with you.
Excellent corrosion resistance, anti-aging and anti-aging property.
Sunshine resistance and weather-proof.
With rectangular mesh and horizontal reinforcement guarantee a very high level of rigidity.
Have four horizontal bending rebar therefore it will strengthen the fence network.
Not only has a beautiful outlook but also has a durable structure.
Can withstand outdoor exposure.
Easy and quick to transport and install.
Terrain adaptability, the adjacent column with undulating ground can be adjusted upwards or downwards.
Bright, reflective colors stand out in day or night
Easy transportation, save time and labor cost.
Mainly used in highway and railway bridge on both sides of the protection zone.
Airports, ports, terminals security.

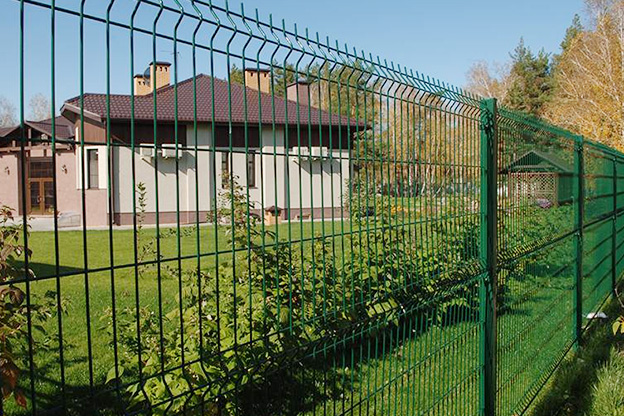

Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation.
Guest Houses, hotels, supermarkets and entertainment protective.

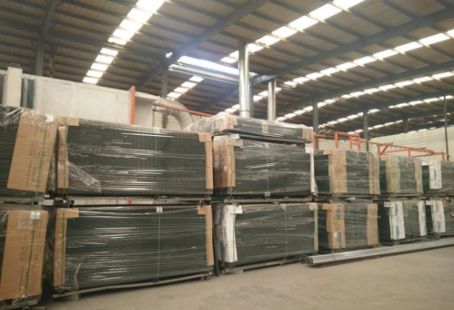

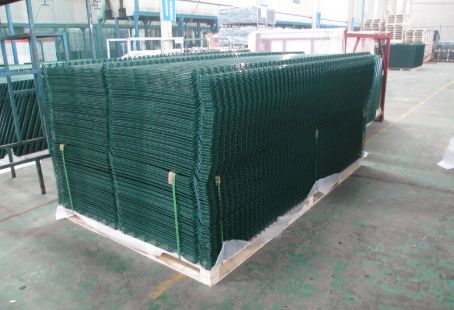

Packaging & Delivery
