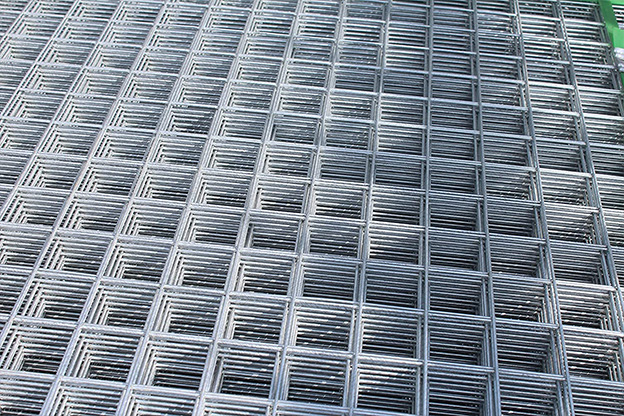

Welded Mesh Panel

Economical and durable welded wire mesh is manufactured using state-of-the-art automated grid welding equipment. The wires and cross wires are laid flat at each intersection and welded by resistance welding to achieve maximum cross-sectional strength.

Welded wire mesh panels feature thicker wire diameters and larger opening sizes, suitable for high-security applications such as prison fences, factory fences, and other perimeter security fences.

Inquire Now

DESCRIPTION

Welded wire mesh can be categorized into welded mesh rolls and welded wire mesh panels. Welded Wire Mesh Panels are crafted from high-quality low carbon steel wires or stainless steel wires, which are welded together horizontally and vertically using automatic welding machines. Subsequently, the welded mesh panels undergo galvanization, PVC coating, or powder coating processes. These welded mesh sheets feature robust welded joints, rendering them capable of withstanding significant impacts.

As one of China's welded wire mesh suppliers, SPIDER can provide welded wire panels made of galvanized, stainless steel, PVC-coated, and powder-coated materials. Browse our current products to see all available sizes, wire diameters, and openings. If you cannot find the exact product you need for your application, please let us know.

Welded Mesh Panels including

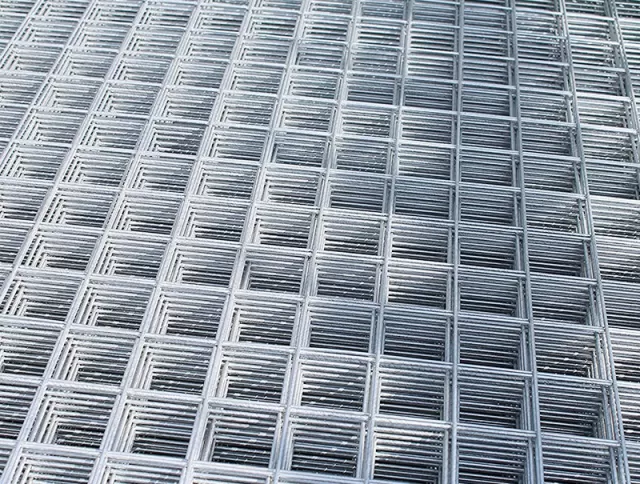

Galvanized Welded Mesh Panel

Stainless Steel Welded Mesh Panel

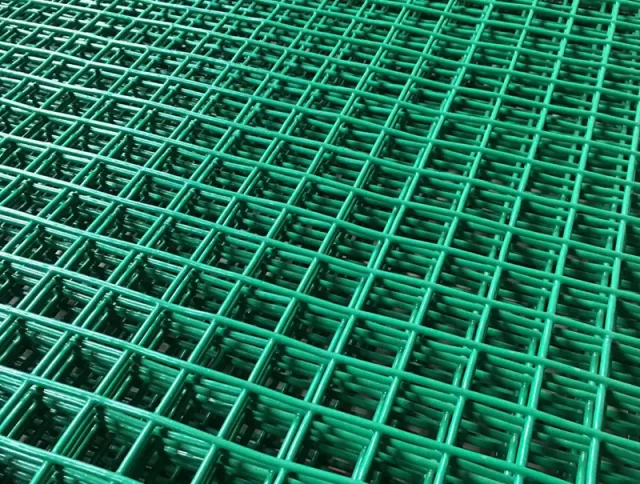

PVC Coated Welded Mesh Panel

Powder Coated Welded Mesh Panel

Specification

Regular Specification of Welded Mesh Panel
Mesh		Wire Diameter
inch	mm	gauge	mm
1 × 1	25 × 25	14–11	2.0–3.0
2 × 1	50 × 25	14–8	2.0–4.0
2 × 2	50 × 50	14–8	2.0–4.0
3 × 2	75 × 50	14–6	2.0–5.0
3 × 3	75 × 75	14–6	2.0–5.0
4 × 2	100 × 50	14–4	2.0–6.0
4 × 4	100 × 100	14–4	2.0–6.0
5 × 5	125 × 125	14–4	2.0–6.0
6 × 6	150 × 150	14–4	2.0–6.0
Panel Size: 1200×2400mm, 2400×3000mm, 2000×3000mm
Other specification can be customized
