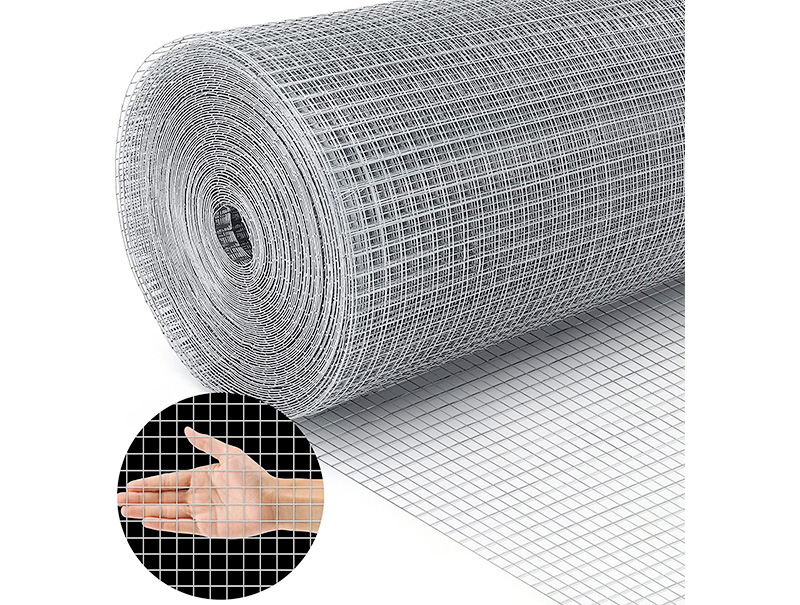

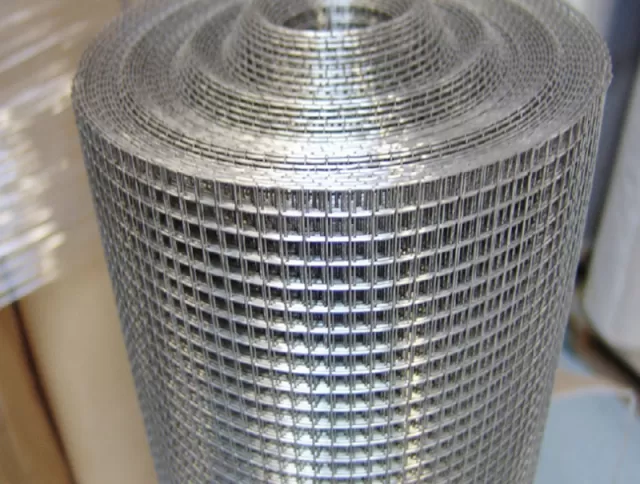

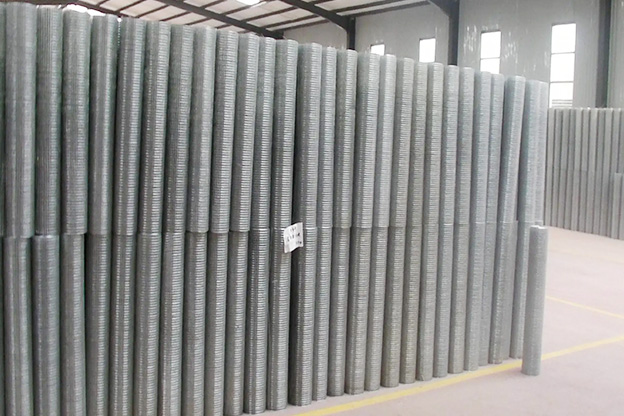

Galvanized Welded Mesh Roll is primarily made of thin low-carbon drawn wire or galvanized wire with a diameter of 0.4mm to 2.5mm, built to withstand all the punches, kicks and rough treatment that farm animals, weather and industrial use can throw at them.
DESCRIPTION
Galvanized Welded Mesh Roll is a general purpose mesh ideal for farm fencing, garden plant protection and animal fencing. Galvanized wire fencing is also suitable for most concrete pouring applications. Galvanized wire mesh is ideal for channel applications and provides a long-lasting finish for any use. It is suitable for boundary fences, cattle, sheep, goats, dog fences etc. and is also suitable for industrial applications. Galvanized wire rolls are an essential product for a wide range of applications due to their strength, durability, and resistance to corrosion. Whether you need wire for construction, agriculture, industrial projects, or DIY crafts, galvanized wire provides a reliable and cost-effective solution. Available in various diameters and coating thicknesses, galvanized wire rolls can be customized to meet specific requirements, ensuring optimal performance and longevity. Investing in high-quality galvanized wire ensures that your projects are completed with materials that offer superior protection and durability.

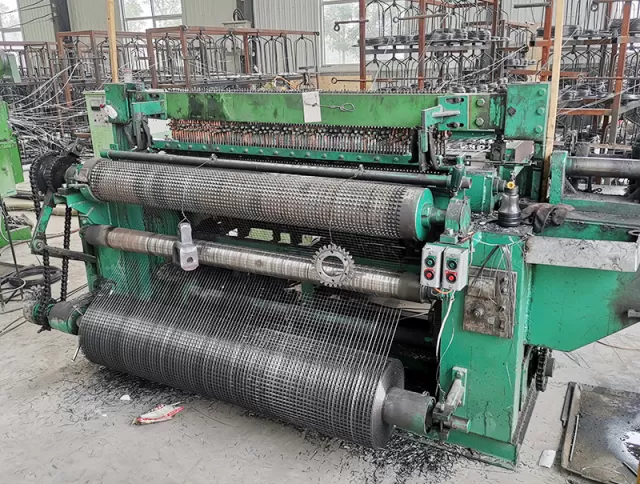

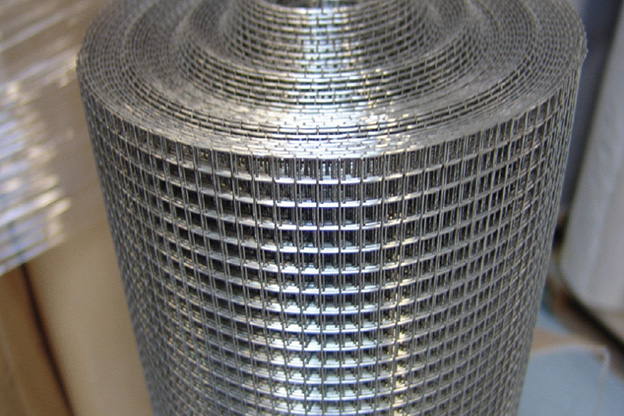

Galvanized Welded Mesh Roll is welded at each wire joint, increasing the strength of the mesh structure and ensuring the product is durable and long-lasting.
Galvanized Welded Mesh Roll is one of the best fencing products for Australia’s tough conditions. Hot-dip galvanized wire is strong and has superior corrosion resistance.
Electro-galvanized (EG) is a more cost-effective method of galvanizing compared to hot-dipped galvanized (HDG), but HDG exhibits superior rust resistance. This distinction is determined by the varying zinc volume on the surface of the wire.
There are fours types of welded wire mesh according to the galvanizing type and how to galvanize.
1.Electro Galvanized Before Welded
2.Electro Galvanized After Welded
3.Hot Dipped Galvanized Before Welded
4.Hot Dipped Galvanized After Welded
Specifications of Galvanised Wire Mesh Roll
| Type | Zinc Coating (g/m2) | Price | Rust-Resistance |
| Electro Galvanized Before Welded | 8-12 | Lowest | Worst |
| Electro Galvanized After Welded | 20-30 | Lower | Worse |
| Hot Dipped Galvanized Before Welded | 40-60 | Middle | Middle |
| Hot Dipped Galvanized After Welded | Over 200 | High | Best |
Galvanised Wire Mesh Roll Standing Stock Dimensions
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15 |
| Remarks: | ||
| 1. Standard roll length: 30m; width: 0.5m to 2.4m | ||
| 2. Special sizes can be customized on your request | ||

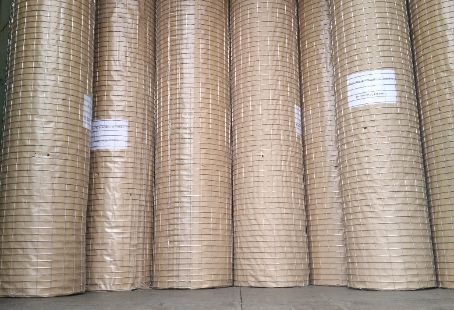

| 3. Packing: in waterproof paper in rolls. Custom packing available at request. | ||
Safety Fences, Cages, and Animal Enclosures
Farms, Gardens, and Other Agricultural Fences
Windows and Safety Guards
Pond Cover or Protection
Archaeological Use
Construction Works
Filler Board
High-Security Applications
Landscaping and Gabion
Wall and Stone Preservation
Greenhouse Use
Particle Separation
General Industrial Use

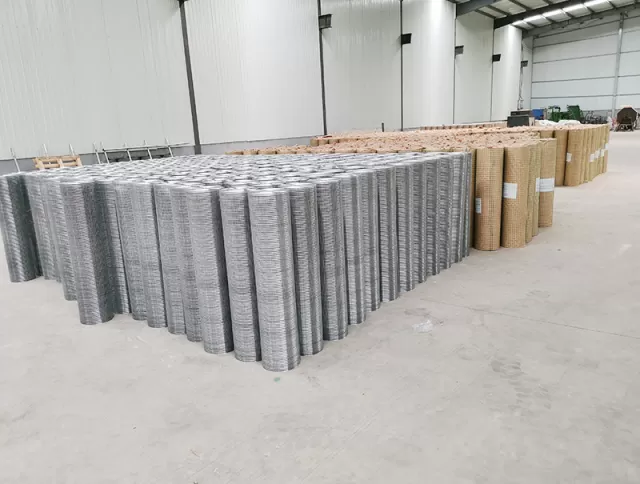

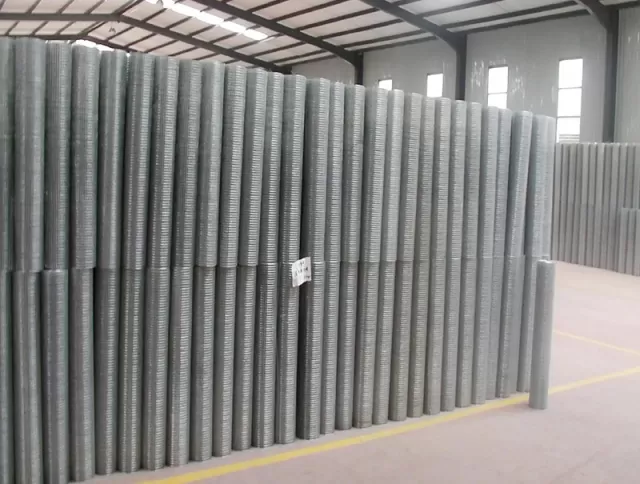

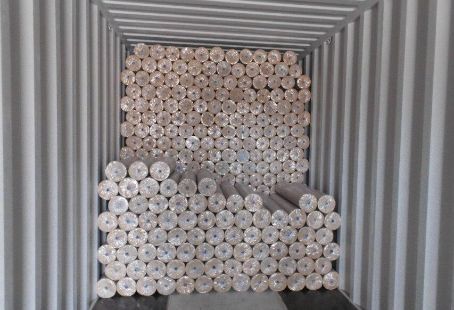

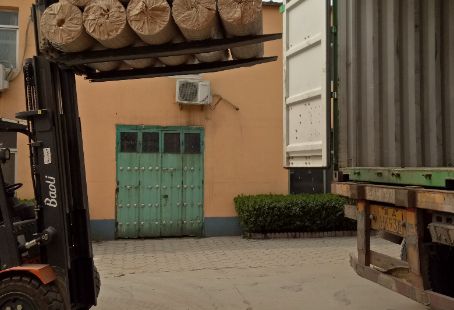

Packaging & Delivery
